GENEL BAKIŞ

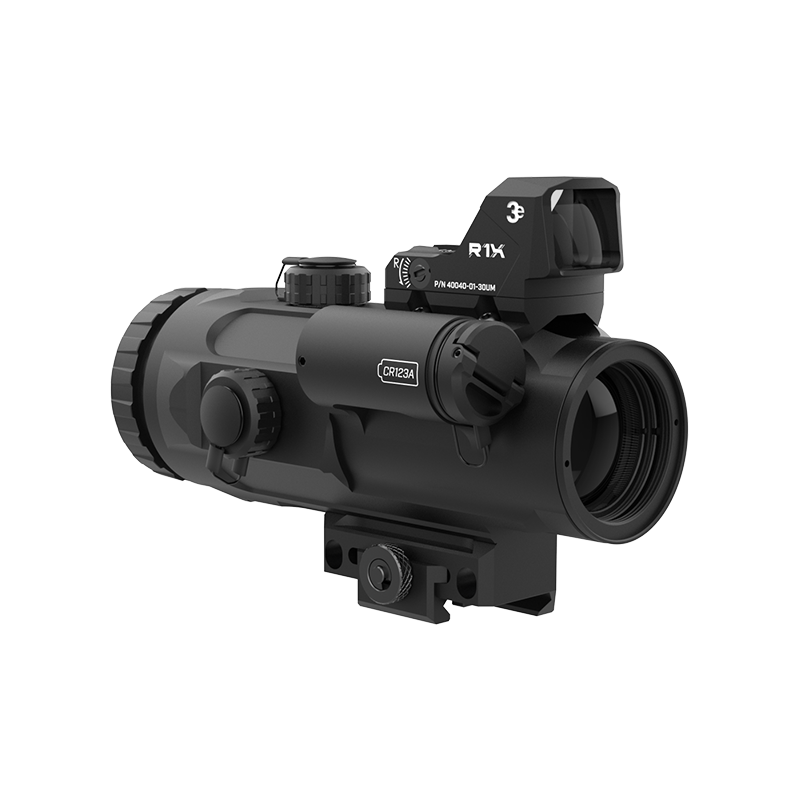

AVCI 4X

AÇIKLAMA

Mekanik Özellikler
Housing Material Aircraft Aluminium
Housing Finish Matte Black
Weight 550 grams
Dimensions (WxLxH) 61x141x77 mm
Mount Capability MIL-STD 1913; STANAG 4694
Yükseliş Değerleri
Elevation Click Value 1 cm
Elevation Range 200 clicks
Rüzgar Değerleri
Windage Click Value 1 cm
Windage Range ± 60 clicks
Optik Özellikler
Magnification 4x
Field of View (Low-High)
Exit Pupil 8 mm
Eye Relief 70 mm
Available Reticles 7.62; 5.56 NATO
Focal Plane Second Focal Plane (SFP)
Elektronik Özellikler
Reticle Illumination Control Electronic Switch
Reticle Illumination Range 1-5 Level Brightness Adjustment
Dot Illumination Control Electronic Switch
Dot Illumination Range 1-5 Level Brightness Adjustment
Battery CR2032
Battery Life 1000+ hours life
Auto Illumination Shutdown After 5 hours
Dot and reticle can be illuminated at the same time or separately
Çevresel Özellikler
Operating Temperature Range -40° to +65° C
Storage Temperature Range -45° to +70° C
Immersion/Waterproof Submersible to 10 m
Nitrogen Filled Yes
Other MIL-STD-810G tests are compatible
Specifications subject to change without notice
